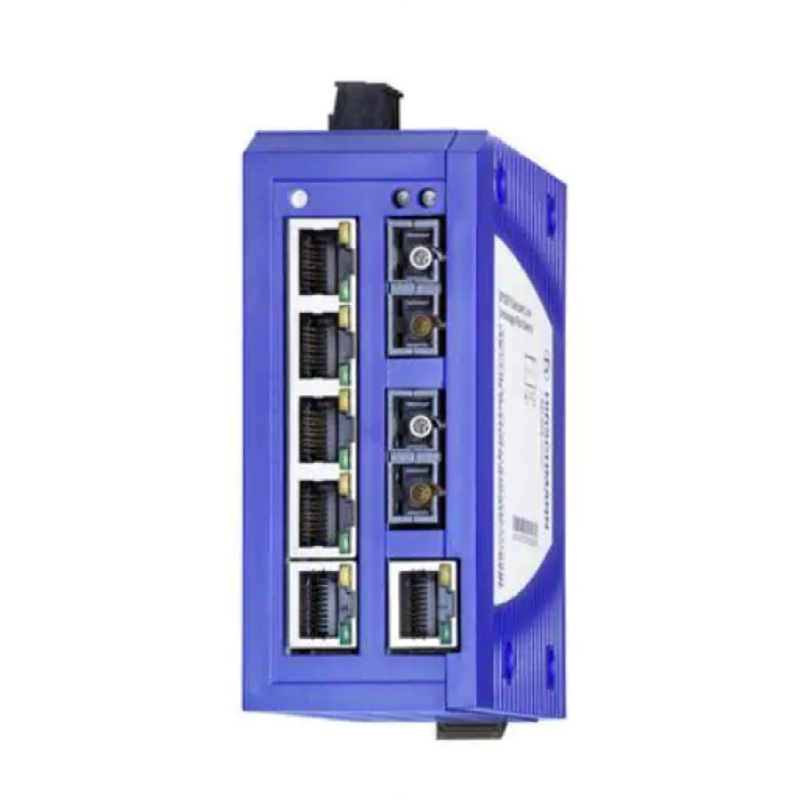

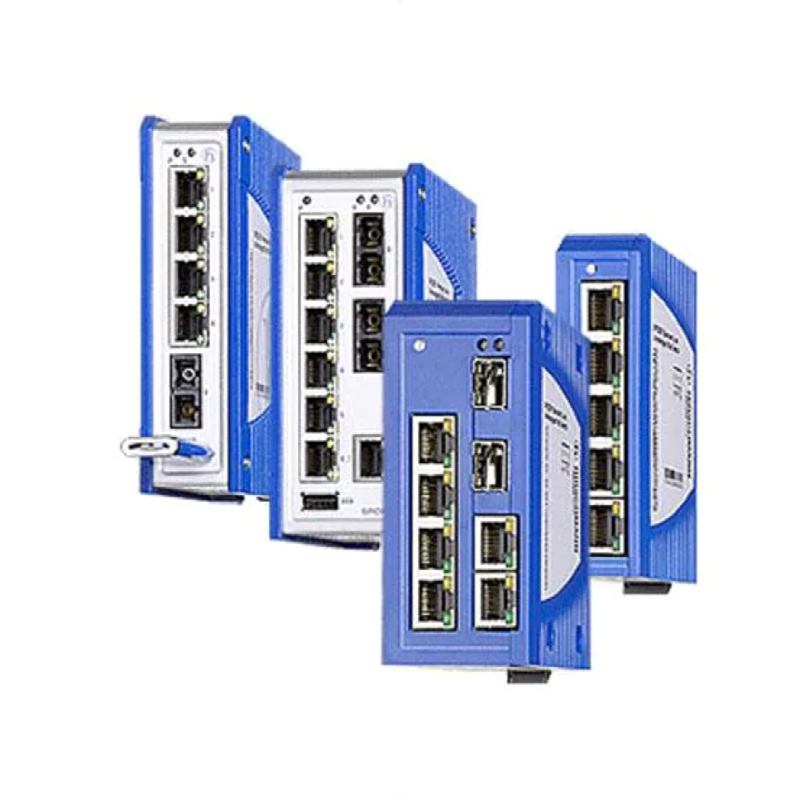

COMPONENTS

• Standard Line

◦ Delivers increased performance and reduces costs, while enabling users to take advantage of Ethernet technology

◦ Designed especially for reliable operation in harsh industrial conditions

◦ Small size saves space in tight areas and makes installation simple and fast

◦ High data throughput achieved by Gigabit data speeds, while fiber communication options ensure long-term scalability

◦ Reduces overall lifecycle costs with low power consumption

◦ Increases performance and reduces costs with PoE+ for greater power to more devices, without an external power supply

• Premium Line

◦ Expands on the benefits of the Standard Line offerings by adding configurable switch functionality typically only found in managed switches

◦ Withstands extreme industrial conditions due to an extended temperature range, a ruggedized metal housing, and an optional conformal coating that protects against dust, humidity, and noxious gases

◦ Meets additional industry standards and approvals, including those for transportation, process automation, and marine applications

FEATURES

• Unmanaged

• Electrical and optical FastEthernet (10/100 MBit/s) and Gigabit-Ethernet (10/100/1000 MBit/s)

• Store and forward switching modes

• Fanless design

SPECIFICATIONS

• Standard Line

◦ 10x maximum ports

◦ Up to 8x TX and 2x FX fast Ethernet ports

◦ Up to 8x TX and 2x FX Gigabit Ethernet ports

◦ Up to 8x PoE+ ports with 120W total power budget

◦ 12/24VDC standard power supply

◦ 555mA maximum current consumption at 24VDC(without PoE)

◦ 1.3W to 13.3W power consumption range (without PoE)

◦ Dimension options (WxHxD, w/o terminal block)

■ 26/38mm x 102mm x 79mm

■ 45mm x 110mm x 88mm

◦ IP30 plastic or IP40 metal (PoE line) protections

◦ Operating temperature ranges

■ 0°C to +60°C

■ -40°C to +70°C extended

• Premium Line

◦ 26x maximum ports

◦ Up to 24x TX and 3x FX fast Ethernet ports

◦ Up to 8x TX and 2x FX Gigabit Ethernet ports

◦ 12/24VDC standard power supply

◦ 360mA maximum current consumption at 24VDC (without PoE)

◦ 2.4W to 9.0W power consumption range (without PoE)

◦ 39/49/56/60.5mm x 135/164mm x 117/121.5mm dimensions (WxHxD, w/o terminal block)

◦ IP40 protection class (metal)

◦ -40°C to +70°C operating temperature range

◦ Conformal coating on the PCB

Applications

• Standard Line
  • Manufacturing and machine building
  • Automation
  • Physical security

• Premium Line
  • Transportation
  • Hazardous locations
  • Physical security
  •
