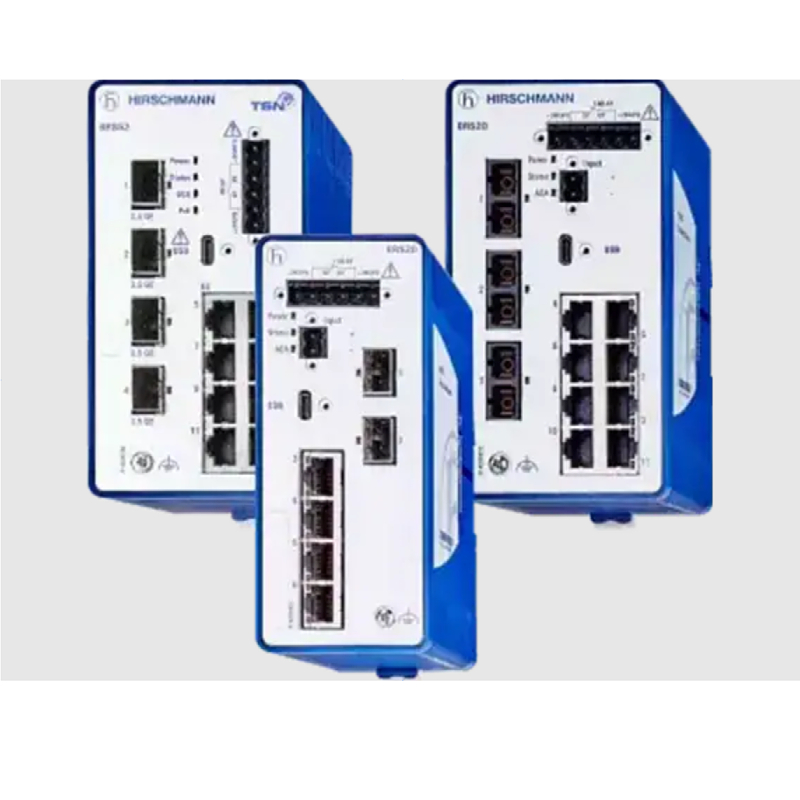

Hirschmann BOBCAT Next-Generation Compact Managed Switches enable real-time communication using Time Sensitive Networking (TSN) on all ports. These compact managed switches allow for expanded bandwidth capabilities by adjusting the tri-speed fiber SFP slots from 1 Gigabit to 2.5 Gigabit, requiring no change to the appliance. The BOBCAT Switches offer enhanced flexibility and interoperability for simple maintenance, future-proof operation, and downward compatibility with existing infrastructure. The Hirschmann BOBCAT Switches also support HiOS software and feature several compelling security elements, including wire-speed Access Control Lists (ACL) and automatic Denial-of-Service (DoS) prevention.

COMPONENTS

• BRS2 - Fast Ethernet with up to 3x SC/ST fiber ports or 4x SFP ports

• BRS3 - Fast Ethernet with up to 4x dual-speed 100/1000Mbit/s SFP ports

• BRS4 - All Gigabit with up to 4x dual-speed 100/1000Mbit/s SFP ports

• BRS5 - All Gigabit with up to 4x tri-speed 100/1000/2500Mbit/s SFP ports

FEATURES

• Up to 24x ports for high port density in a compact housing

• Supports up to 240W across 8x PoE/PoE+ ports without load sharing to ensure maximum power output

• Robust industrial design for extreme environmental conditions, including wide temperature ranges and power needs (12V, 24V, or 48V)

• Real-time TSN Ethernet support for precise data transmission

• DIN rail mount

• Advanced security features, including wire-speed access control lists (ACL) and automatic denial-of-service (DoS) prevention

• Increased bandwidth capabilities, supporting copper and tri-speed fiber SFP slots with 100Mbit/s, 1Gbit/s, and 2.5Gbit/s speeds (SFP only)

• Fanless design

• IP30 rated

APPLICATIONS

• Automotive

• Manufacturing

• Machine building

• Water management

• Security

• Oil and gas

• Consumer packaged goods

SPECIFICATIONS

• 0m to 100m twisted-pair (TP) cable length range

• 2x 12VDC to 24VDC operating voltage range

• 5W to 15W power consumption range

• 60-month guarantee

• Operating temperature ranges

◦ 0°C to +60°C

◦ -40°C to +70°C
